Practical Example: Python+TensorFlow

Notes on installing and testing tensorflow for YCRC clusters Grace & McCleary

Prerequisites

• Basic understanding of command line shell commands and syntax
• A Yale NetID
• An active Yale VPN connection
• A YCRC Cluster account

Setup

1. Log in to OOD for the cluster you have an account on with NetID and Password.

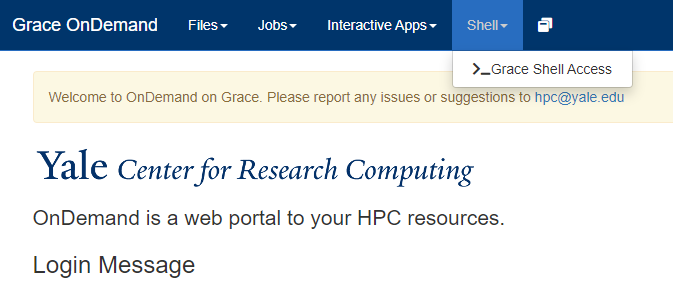

2. Start a new interactive shell.

   "Shell" > "Clustername Shell Access"



3. Start an interactive job.

   salloc -c 2


   salloc Argument	Description
   -c 2	Allocate two CPU cores (and default 5GiB RAM per core)

4. Create the Conda environment for tensorflow, index it for the YCRC Open Ondemand web dashboard.

   module load miniconda
   mamba create --name tf2 python=3.9 cudatoolkit=11.2.2 cudnn=8.1.0 jupyter jupyterlab
   # environment creation will take a few minutes
   conda activate tf2
   # Do not install tensorflow with conda, it is no longer supported
   pip install tensorflow==2.11.*
   # configure system paths to point to python libraries
   mkdir -p $CONDA_PREFIX/etc/conda/activate.d
   echo 'export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$CONDA_PREFIX/lib/' > $CONDA_PREFIX/etc/conda/activate.d/env_vars.sh
   #run command to add to list of jupyter note book environments
   ycrc_conda_env.list build


Start a Notebook

1. Log in to OOD for the cluster you have an account on with NetID and Password.

2. Navigate to the Jupyter job submission form.

   "Interactive Apps" > "Jupyter Notebook"



3. Set up the request.

   GPUs and their needs

   Not all partitions have GPUs, they must be requested explicitly, and you need to load the right version of CUDA + cuDNN.

   To make this environment work properly in your jupyter job you need to

   • Choose your tf2 environment from the "Environment Setup" dropdown



   • Set "Number of GPUs per node" to at least 1.



   • Set a partition with GPUs available.



   Then click the Launch button. Depending on how busy the cluster is your job may need to wait in the queue.

4. Connect to the Jupyter Server.



Containers - tensorflow/serving

You can use TensorFlow Serving to serve multiple versions of models but examples given use Ubuntu packages or Docker. YCRC clusters are RHEL and do not allow Docker, so instead we use Apptainer

docker pull tensorflow/serving

export ML_PATH=$HOME/ml # or wherever this project is
docker run -it --rm -p 8500:8500 -p 8501:8501 \
   -v "$ML_PATH/my_mnist_model:/models/my_mnist_model" \
   -e MODEL_NAME=my_mnist_model \
   tensorflow/serving

apptainer build tf_model_server.sif docker://tensorflow/serving

export ML_PATH=$HOME/repos/handson-ml2
apptainer run --containall -B "$ML_PATH/my_mnist_model:/models/my_mnist_model" \
    --env MODEL_NAME=my_mnist_model tf_model_server.sif

• Only need to build .sif file when you would run docker pull
• Don't need to forward ports out of container
• --containall makes apptainer run more like docker, allows finer control of what files container sees

Heterogeneous Job Layouts

If you want to allocate multiple node types in a single job, e.g. a larger first task/worker for a tf "chief" or a CPU-only parameter server.

#!/bin/bash
#SBATCH --partition=gpu --time=1- --ntasks=1 --cpus-per-task=4
#SBATCH --mem-per-cpu=8G --gpus-per-task=1 --job-name=tf2-cluster-chief
#SBATCH hetjob
#SBATCH --ntasks=8 --cpus-per-task=2
#SBATCH --mem-per-cpu=16G --gpus-per-task=1

module purge
module load miniconda
conda activate tf2

# this python process will start on a node in the gpu partition with 4 CPUs & 1 GPU
python cluster_tf.py

#!/bin/bash
#SBATCH --partition=day --time=1- --ntasks=1 --cpus-per-task=2
#SBATCH --mem-per-cpu=8G --job-name=tf2-cluster-par-serv
#SBATCH hetjob
#SBATCH --partition=gpu --ntasks=8 --cpus-per-task=2
#SBATCH --mem-per-cpu=16G --gpus-per-task=1

module purge
module load miniconda
conda activate tf2

# this python process will start on a node in the day partition with 2 CPUs
python cluster_tf.py

---

Last update: April 3, 2023
